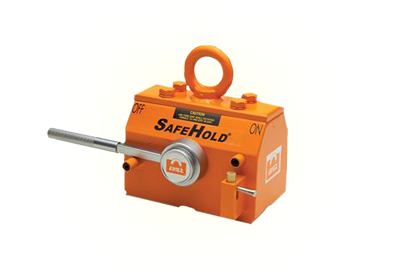

XPL Series
Manually operated rare earth permanent lift magnets offer high capacity and versatility by carrying both round and flat objects.
In addition the XPL-Series magnets are capable of lifting round material.
These multiple pole permanent magnets require no power supply. They are available in six models with capacities up to 5,000 lbs (2,267 kg). The following capacities allow a 2:1 safety factor:
| MODEL | LIFT CAPACITY FLAT STEEL (lb) |
LIFT CAPACITY FLAT STEEL (kg) |
LIFT CAPACITY ROUND STEEL (lb) |
LIFT CAPACITY ROUND STEEL (kg) |
| XPL-4/3 | 400 lbs | 181 kg | 300 lbs | 136 kg |
| XPL-8/6 | 800 lbs | 362 kg | 600 lbs | 272 kg |
| XPL-15/9 | 1,500 lbs | 680 kg | 900 lbs | 408 kg |
| XPL-24/16 | 2,400 lbs | 1,088 kg | 1,600 lbs | 725 kg |
| XPL-30/24 | 3,000 lbs | 1,360 kg | 2,400 lbs | 1,088 kg |
| XPL-50/40 | 5,000 lbs | 2,268 kg | 3,700 lbs | 1,678 kg |
Use the table above to find the part number you desire then click "Add To Quote." |
.
