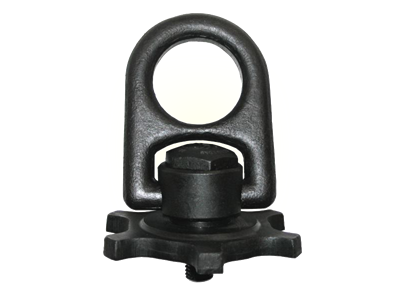

Speed Base Hoist Rings

Speed Base Hoist Rings

Product Features:

  • Fastest Hoist Ring in the West
  • This hoist ring is for users that install and remove lift rings repeatedly.
  • Tap the lugs with a small hammer or “tapper” to make sure base is tight on the surface of the object being lifted.
  • No Torque wrenches required Just spin the base down flush and tap one of the lugs to tighten.
  • Simple and Fast



Specifications:

Item # Rated Load Thread Size Thread Proj.
AK42002  2500 lbs  1/2" - 13  3/4 in
AK42004  4000 lbs  5/8" - 11  1 in
AK42006  5000 lbs  3/4" - 10  1 in
AK42202  7000 lbs  3/4" - 10  1 1/2 in
AK42204  8000 lbs  7/8" - 9  1 1/2 in
AK42206  10000 lbs  1" - 8  1 1/2 in
AK42802  15000 lbs  1 1/4" - 7  2 in
AK42704  20000 lbs  1 3/8" - 6  2 in
AK42404  20000 lbs  1 1/2" - 6  3 1/4 in
AK42400  20000 lbs  2" - 4 1/2  3 1/4 in

Use the table above to find the part number you desire then click "Add To Quote."
You can add as many different items to your quote as you want!
.
