Small Bundle Sheet Lifter

The Small Bundle Sheet Lifter is the perfect way to lift and transport smaller capacity sheet loads.

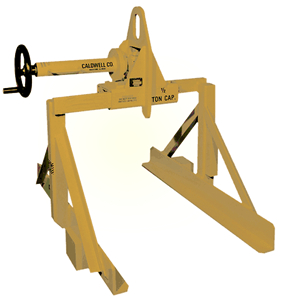

Small Bundle Sheet Lifter Model 62

Product Features:

  • Standard light duty unit for handling smaller size sheets and bundles.
  • Size and versatility allows for handling of crates, bins and other smaller size containers.
  • Side oriented extended length hand wheel adjustment standard.
  • Self locking worm gear leg drive system.
  • Complies with ASME standards.



Specifications:

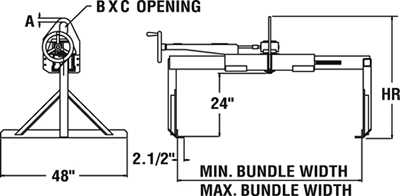

Small Bundle Sheet Lifter Model 62 Diagram

Model Number Capacity
(tons)		 Min Bundle Width
(in.)		 Max Bundle Width
(in.)		 Min Aisle Width
(in.)		 A
(in.)		 B
(in.)		 C
(in.)		 HR
(in.)		 Weight
(lbs)
62-1 1/2-36 1-1/2 12 36 8 1-1/2 3 8 42 512
62-1 1/2-48 1-1/2 16 48 8 1-1/2 3 8 42 525
62-3-48 3 16 48 8 1-1/2 5 8 44 670
62-3-60 3 20 60 8 1-1/2 5 8 44 736
62-5-48 5 16 48 8 2 7 8 52 750
62-5-60 5 20 60 8 2 7 8 52 763

Use the table above to find the part number you desire then click "Add To Quote."
You can add as many different items to your quote as you want!
.
