Side Load Hoist Rings

Side Load Hoist Rings

Product Features:

  • Designed for side-mounted applications.
  • Smooth swiveling and pivoting action.
  • Aircraft Quality “Chrome Moly”, Strong & Tough.
  • Extra large ring accepts many styles and sizes of hoist hooks.
  • Ideal for stamping and injection mold industries.
  • Magnetic particle inspected.
  • Rated loads from 650 lbs. to 29000 lbs.
  • Thread size from 5/16” to 2”
  • Safety Factor : 5:1
  • Swivels 360° - Pivots 180°
  • Material : Aircraft Quality Alloy
  • Finish : Black Oxide per MIL Specification (Cadmium Plated Available)
  • Safety Factor : 5:1
  • Magnetic Particle Inspected
  • Certified Heat Treatment



Specifications:

Side Load Hoist Rings

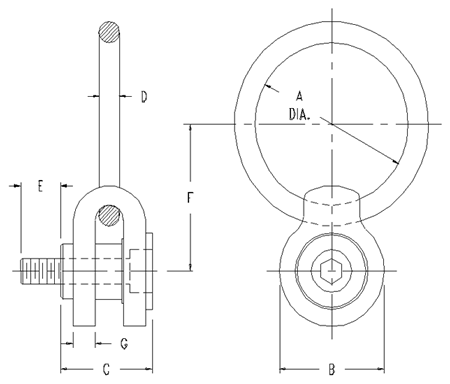

Item # Rated Load Thread Size Thread Protrusion (E) B Torque
43510.00 650 lbs  5/16" - 18  5/8 in  1 1/2 in  3.5 ft/lb
43515.00 800 lbs  3/8" - 16  3/4 in  1 1/2 in  4.5 ft/lb
43520.00 1800 lbs  1/2" - 13  1 in  2 3/8 in  15 ft/lb
43525.00 2500 lbs  5/8" - 11  1 1/4 in  2 3/8 in  25 ft/lb
43530.00 4000 lbs  3/4" - 10  1 1/2 in  3 3/4 in  50 ft/lb
43535.00 5500 lbs  7/8" - 9  2 in  3 3/4 in  80 ft/lb
43540.00 7000 lbs  1" - 8  2 in  3 3/4 in  90 ft/lb
43545.00 14000 lbs  1 1/4" - 7  2 in  4 5/8 in  150 ft/lb
43547.00 14000 lbs  1 1/4" - 8  2 in  4 5/8 in  150 ft/lb
43550.00 17000 lbs  1 1/2" - 6  2 1/2 in  4 5/8 in  250 ft/lb
43552.00 17000 lbs  1 1/2" - 8  2 1/2 in  4 5/8 in  250 ft/lb
43555.00 29000 lbs  2" - 4 1/2  3 1/8 in  4 5/8 in  300 ft/lb
43557.00 29000 lbs  2" - 8  3 1/8 in  4 5/8 in  300 ft/lb

Use the table above to find the part number you desire then click "Add To Quote."
You can add as many different items to your quote as you want!
.
