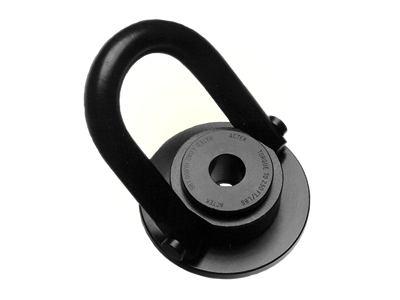

Round Base Hoist Rings

Round Base Hoist Rings

Product Features:

  • Swivel 360º and pivots 180º.
  • Direct mounting.
  • Wide round base helps distribute shear loads.
  • Aircraft Quality "Chrome Moly" and Heat-Treated.
  • Magnetic Particle Inspected.
  • Rated load capacities from 2500 lbs. to 20000 lbs.
  • Many OEM applications.
  • Perfect for pre-cast concrete products : simply cast a threaded anchor or stud into the concrete part. Mount the hoist ring and you have an easy, safe lifting/ handling application.
  • Safety Factor : 5:1.
  • Certified Heat Treatment.
  • 200% Proof-Load Tested with Serial.
  • High Strength Alloy screws must be used.


Specifications:

Round Base Hoist Rings

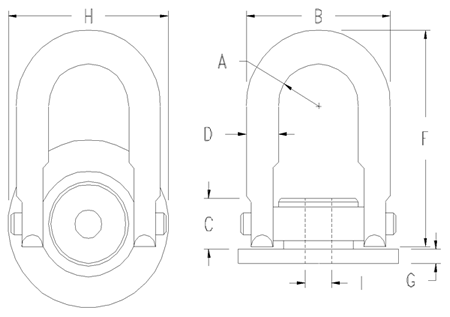

Item # Rated Load B A I Torque
44646.00 2500 lbs  3 1/4 in  0.88 in  1/2 in  28 ft/lb
44642.00 4000 lbs  3 1/4 in  0.88 in  5/8 in  60 ft/lb
44654.00 5000 lbs  3 1/4 in  0.88 in  3/4 in  100 ft/lb
44660.00 7000 lbs  4 13/16 in  1.40 in  3/4 in  100 ft/lb
44656.00 8000 lbs  4 13/16 in  1.40 in  7/8 in  160 ft/lb
44666.00 10000 lbs  4 13/16 in  1.40 in  1 in  230 ft/lb
44802.00 15000 lbs  6 in  1.75 in  1 1/4 in  470 ft/lb
44803.00 15000 lbs  6 in  1.75 in  1 1/2 in  800 ft/lb
44704.00 20000 lbs  7 11/32 in  2.00 in  1 1/2 in  800 ft/lb
44404.00 24000 lbs  8 in  2.25 in  1 1/2 in  800 ft/lb
44406.00 24000 lbs  8 in  2.25 in  1 3/4 in  800 ft/lb
44408.00 30000 lbs  8 in  2.25 in  2 in  800 ft/lb
44646W  2500 lbs  3 1/4 in  0.88 in  Weld-On  N/A
44642W  4000 lbs  3 1/4 in  0.88 in  Weld-On  N/A
44654W  5000 lbs  3 1/4 in  0.88 in  Weld-On  N/A
44660W  7000 lbs  4 13/16 in  1.40 in  Weld-On  N/A
44656W  8000 lbs  4 13/16 in  1.40 in  Weld-On  N/A
44666W  10000 lbs  4 13/16 in  1.40 in  Weld-On  N/A
44802W  15000 lbs  6 in  1.75 in  Weld-On  N/A
44803W  15000 lbs  6 in  1.75 in  Weld-On  N/A
44704W  20000 lbs  7 11/32 in  2.00 in  Weld-On  N/A
44404W  24000 lbs  8 in  2.25 in  Weld-On  N/A
44406W  24000 lbs  8 in  2.25 in  Weld-On  N/A
44408W  30000 lbs  8 in  2.25 in  Weld-On  N/A

Use the table above to find the part number you desire then click "Add To Quote."
You can add as many different items to your quote as you want!
.
