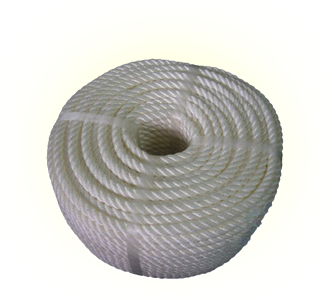

Polyamide rope
|
CODE | B | D | E | F | G | H | I | J | K | L | M | N |
rope diameter mm | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 24 | 30 |
weight/100 meters in kg | 0,8 | 1,7 | 3 | 4,5 | 6,5 | 9 | 11,5 | 14,8 | 18 | 22 | 26 | 40 |
breakage in kg | 275 | 590 | 1040 | 1380 | 1950 | 2690 | 3330 | 4250 | 5120 | 6140 | 7170 | 10800 |
Use the table above to find the part number you desire then click "Add To Quote." |
.
