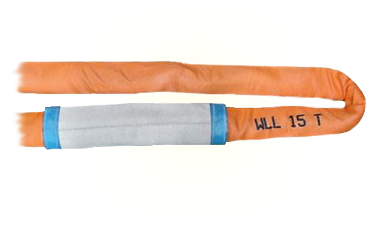

Protective Sleeves
We provide high-quality protective sleeves and wear pads for round and web slings. These products fortify lifting equipment against extreme abrasion and sharp edges. Our specially developed UltraProtect sling protection is made of the Dyneema fibre, making UltraProtect sleeves both very light and extremely resistant.
- A firm Velcro closing makes UltraProtect very practical and easy to fit and adjust
- The Velcro closing enables the user to use a single UltraProtect sleeve to protect various types of round slings, web slings, and other lifting equipment
- Available in various sizes
- Available in both light and heavy duty versions to suit different needs
|
Single Wall Round Sling Sleeves
| Part Number |
Description |
Color |
| 41-RSS-PUR |
1 1/2" |
purple |
| 48-RSS-GRN |
1 3/4" |
green |
| 60-RSS-YLW |
2 1/8" |
yellow |
| 60-RSS-TAN |
2 1/8" |
tan |
| 71-RSS-RED |
2 11/16" |
red |
| 76-RSS-WHITE |
2 7/8" |
white |
| 91-RSS-BLUE |
3 1/2" |
blue |
| 123-RSS-ORANGE |
4 5/7" |
orange |
Double Wall Round Sling Sleeves
| Part Number |
Description |
Color |
| 41-RSS-PUR-D |
1 1/2" |
purple |
| 48-RSS-GRN-D |
1 3/4" |
green |
| 60-RSS-YLW-D |
2 1/8" |
yellow |
| 60-RSS-TAN-D |
2 1/8" |
tan |
| 71-RSS-RED-D |
2 11/16" |
red |
| 76-RSS-WHITE-D |
2 7/8" |
white |
| 91-RSS-BLUE-D |
3 1/2" |
blue |
| 123-RSS-ORANGE-D |
4 5/7" |
orange |
UltraProtect Heavy Duty Dyneema Sleeves
| Part Number |
Outside Width (in.) |
Inside Width (in.) |
Weight/ft (lbs.) |
| UPHD-55 |
2.55 |
2.16 |
0.32 |
| UPHD-65 |
2.95 |
2.56 |
0.35 |
| UPHD-75 |
3.35 |
2.95 |
0.38 |
| UPHD-90 |
3.94 |
3.54 |
0.46 |
| UPHD-115 |
4.92 |
4.53 |
0.57 |
| UPHD-125 |
5.32 |
4.92 |
0.6 |
| UPHD-145 |
6.1 |
5.7 |
0.7 |
| UPHD-175 |
7.28 |
6.89 |
0.83 |
| UPHD-205 |
8.47 |
8.1 |
0.97 |
| UPHD-220 |
9.01 |
8.66 |
1.08 |
| UPHD-275 |
11.22 |
10.38 |
1.28 |
| UPHD-335 |
13.58 |
13.19 |
1.56 |
UltraProtect Light Duty Dyneema Sleeves
| Part Number |
Outside Width (in.) |
Inside Width (in.) |
Weight/ft (lbs.) |
| UPLD-55 |
2.47 |
2.16 |
0.16 |
| UPLD-65 |
2.87 |
2.56 |
0.19 |
| UPLD-75 |
3.27 |
2.95 |
0.21 |
| UPLD-90 |
3.86 |
3.54 |
0.24 |
| UPLD-115 |
4.84 |
4.53 |
0.3 |
| UPLD-125 |
5.24 |
4.92 |
0.32 |
| UPLD-145 |
6.02 |
5.7 |
0.37 |
| UPLD-175 |
7.2 |
6.89 |
0.45 |
| UPLD-205 |
8.39 |
8.1 |
0.51 |
| UPLD-220 |
8.98 |
8.66 |
0.5 |
| UPLD-275 |
11.14 |
10.38 |
0.68 |
| UPLD-335 |
13.5 |
13.19 |
0.83 |
Wear Pads
| Part Number |
Description |
| SWP-03 |
3 inch sliding wear pad |
| SWP-04 |
4 inch sliding wear pad |
| SWP-06 |
6 inch sliding wear pad |
| SWP-08 |
8 inch sliding wear pad |
| SWP-10 |
10 inch sliding wear pad |
| SWP-12 |
12 inch sliding wear pad |
Use the table above to find the part number you desire then click "Add To Quote."
You can add as many different items to your quote as you want!
|
