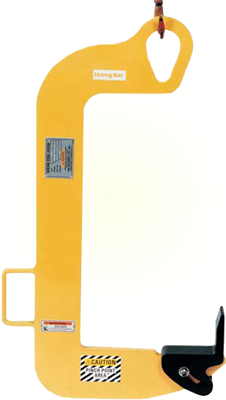

Pivoting Coil Hook

Quick and easy way to transfer slit coils from an eye horizontal to an eye vertical position.

Pivoting Coil Hook

Product Features:

  • Easy horizontal to vertical upending of coils.
  • Pivoting wedge for easy tilting of stacked coils.
  • Wedge acts as retainer.
  • Efficient and easy to use.
  • Popular for use with small, lightweight coils.
  • For use where overhead clearance is limited.
  • Specially designed heat treated pivoting wedge.
  • Complies with ASME standards.

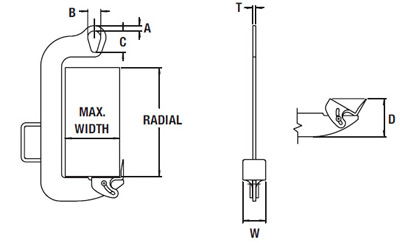

Specifications:

Pivoting Coil Hook

Model Number Capacity
(tons)		 Max. Width
(in.)		 Max Radial
(in.)		 Min. ID
(in.)		 A
(in.)		 B
(in.)		 C
(in.)		 D
(in.)		 T
(in.)		 W
(in.)		 Weight
(lbs.)
80H-1/2-6/13 1/2 6 13 9 13/16 2 3-5/16 6 1/2 3-1/2 20
80H-1/2-12/13 1/2 12 13 13 13/16 2 3-5/16 6 1/2 3-1/2 28
80H-1-8/16 1 8 16 10 13/16 2 3-5/16 6 1/2 3-1/2 23
80H-2-10/18 2 10 18 12-1/2 1 2-5/8 4 6-3/4 3/4 2 42
80H-3.5-12/20 3-1/2 12 20 14-1/2 1-3/16 3-5/8 5-5/16 7-3/4 1 2-1/2 80



Use the table above to find the part number you desire then click "Add To Quote."
You can add as many different items to your quote as you want!
.
