Pivot Plates

Pivot Plates

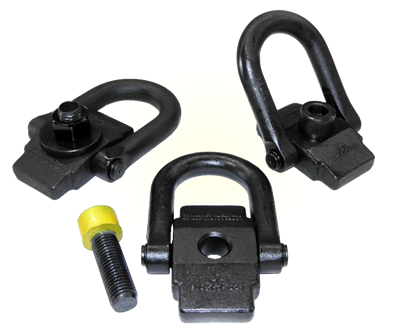

Product Features:

  • Large Bail Pivots 180º.
  • Rugged tapered plate minimizes shear force on high strength alloy screw.
  • Base plate can be welded into position thus eliminating use of screws.
  • Aircraft Quality "Chrome Moly" and heat treated.
  • Ideal for some OEM applications.
  • Rated lifting capacity from 7000 lbs. to 10000 lbs.
  • Safety Factor : 5:1.
  • Thread engagement 1 1/2 times screw diameter.
  • Use high tensile alloy screw equivalent to Grade 8.
  • High Strength Alloy screws must be used.



Specifications:

Pivot Plates

Item # Rated Load Thread Size B Torque
44410 7000 lbs 3/4" - 10 4 13/16 in 100 ft/lb
44415 8000 lbs 7/8" - 9 4 13/16 in 160 ft/lb
44420 10000 lbs 1" - 8 4 13/16 in 230 ft/lb
44421 10000 lbs 1 1/4" - 7 4 13/16 in 230 ft/lb
44423 10000 lbs 1 1/8" - 7 4 13/16 in 230 ft/lb
44610 7000 lbs 3/4" - 10 4 13/16 in 100 ft/lb
44615 8000 lbs 7/8" - 9 4 13/16 in 160 ft/lb
44620 10000 lbs 1" - 8 4 13/16 in 230 ft/lb
44625 10000 lbs 1 1/8" - 7 4 13/16 in 230 ft/lb
44630 10000 lbs 1 1/4" - 7 4 13/16 in 230 ft/lb

Use the table above to find the part number you desire then click "Add To Quote."
You can add as many different items to your quote as you want!



.
