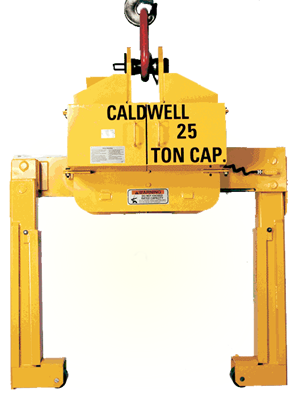

Motorized Grab - Fixed Bail

The Motorized Grab Coil Lifter is the best way to make sure your loads are safe and secure while being transported.

Motorized Grab - Fixed Bail

Product Features:

  • Motorized leg drive maximizes the efficient handling of coils.
  • Leg drive speed - 2.8” per second.
  • Narrow aisle stacking maximizes coil storage floor space.
  • Curved lifting pads for coil protection.
  • High impact plastic toe rollers prevent lifter foot contact.
  • Anti-clamp limit switch protects coil during closing of lifter.
  • Heavy duty torque limiting drive protection during maximum open/closed conditions.
  • Lockout limit switch prevents inadvertent leg opening during lift.
  • Alloy steel pin bail.
  • Easily replaceable slide wear guides.
  • Design allows for easy maintenance access to drive components.
  • Designed to operate on AC power supply.
  • Field upgradable to rotating style.
  • Complies with ASME standards.



Specifications:

Motorized Grab - Fixed Bail

Model Number Capacity
(tons)		 Min Coil Width
(in.)		 Max Coil Width
(in.)		 HR
(in.)		 Throat
(in.)		 B
(in.)		 C
(in.)		 Weight
(lbs)
85-15-72 15 20 72 67-1/2 32.3 3 8-1/4 3440
85-20-72 20 20 72 67-1/2 32.3 3 8-1/4 3540
85-25-72 25 20 72 69-1/4 32.3 3-1/2 8 3780
85-33-72 33 20 72 69-1/4 32.3 3-1/2 8 3880
