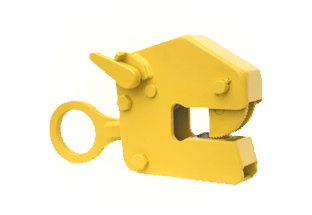

Model PDS
Product Features:
- Special clamp specifically designed for use in shot blast applications.
- Horizontal to Vertical Lift
- Capable of turning a single steel plate from horizontal to vertical before vertically transferring the material.
- Locks Open and Locks Closed
- Locks open to facilitate loading and unloading clamp.
- Locks closed onto material for a more secure lift.
- Wide Jaw Openings
- Safety Clamps, Inc. offers the widest standard jaw openings in the industry.
- High Strength Shock Resistant Steel
- Provides for longer clamp life.
- Working Parts Protected
- Working parts remain inside the body in the “locked closed” position and the “locked open” position.
- Protects parts for longer use.
- Rated for 420 Brinell Surface Hardness
- Grippers are rated to lift material with a surface hardness of up to 420 Brinell.
- Dual gripping cams on all capacities.
- Gripping pad is self-aligning - increased surface contact.
Specifications:
Model Number | Capacity (tons) |
A | B | C | D max |
E | F | G | H | J | K | Weight (lbs.) |
PDS2 | 2 | 1 5/8" | 4 3/4 | 9 1/2 | 15 1/4 | 3 | 9 1/8 | 3 7/8 | 3 | 3/4 | 5/8 | 32 |
PDS3 | 3 | 1 5/8" | 4 3/4 | 9 1/2 | 15 1/4 | 3 | 9 1/8 | 3 7/8 | 3 | 3/4 | 5/8 | 34 |
PDS4 | 4 | 2 1/8" | 5 3/8 | 12 1/4 | 19 | 3 1/2 | 10 5/8 | 4 3/4 | 3 | 1 | 3/4 | 55 |
PDS6 | 6 | 2 1/8" | 5 3/8 | 12 1/4 | 19 | 3 1/2 | 10 5/8 | 4 3/4 | 3 | 1 | 3/4 | 57 |
Use the table above to find the part number you desire then click "Add To Quote." |
.
