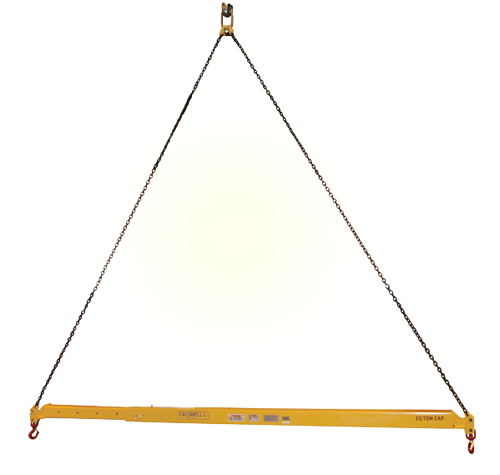

High Capacity Adjustable Spreader Beams

This is an adjustable spreader beam that provides a versatile solution for handling many different sized loads, ideal for outdoor applications.

High-Capacity Adjustable Spreader Beams

Product Features:

  • Ideal where headroom is not limited.
  • Adds stability to lift.
  • Choose from a wide range of sizes and capacities.
  • Telescoping adjustment at 12 inch increments.
  • Select chain or wire rope top rigging.
  • Custom designs available.
  • Complies with ASME standards.



Specifications:

High-Capacity Adjustable Spreader Beams


Model Number Capacity (tons) Max Spread (ft) Min Spread (ft) HR
(in.)		 A (in.) B (in.) C (in.) F (in.) O (in.) Weight (lbs) Chain Rigging Weight (lbs)
32-20-7/11 20 11 7 107/93 1.75 6.0 12.0 14.2 2.27 430 175
32-20-9/15 20 15 9 144/123 1.75 6.0 12.0 14.2 2.27 540 225
32-20-12/20 20 20 12 180/151 1.75 6.0 12.0 14.2 2.27 822 275
32-25-7/11 25 11 7 107/98 2 7.0 14.0 14.2 2.27 430 240
32-25-9/15 25 15 9 141/119 2 7.0 14.0 14.2 2.27 540 295
32-25-12/20 25 20 12 179/149 2 7.0 14.0 41.2 2.27 825 365
32-30-7/11 30 11 7 115/102 2 7.0 14.0 18.3 3.02 615 240
32-30-9/15 30 15 9 145/124 2 7.0 14.0 18.3 3.02 750 295
32-30-12/20 30 20 12 183/154 2 7.0 14.0 18.3 3.02 1065 365
32-40-7/11 40 11 7 118/105 2.25 8.0 16.0 18.3 3.02 620 375
32-40-9/15 40 15 9 148/127 2.25 8.0 16.0 18.3 3.02 840 470
32-40-12/20 40 20 12 184/154 2.25 8.0 16.0 18.3 3.20 1500 565

Use the table above to find the part number you desire then click "Add To Quote."
You can add as many different items to your quote as you want!
.
