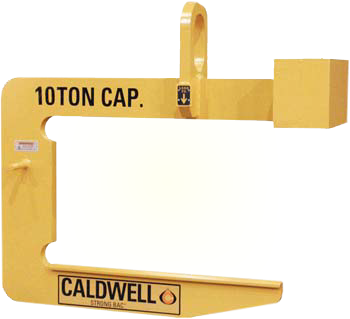

Heavy Duty C-Hook

The best way to carry and transfer large coils.

Heavy Duty C-Hook

Product Features:

  • Designed for heavy duty applications.
  • High tensile alloy steel plate reduces physical size and weight.
  • Counter balanced to hang level when empty.
  • Inside radius on hooks avoid coil edge contact.
  • Curved coil saddle is standard.
  • Guide handles for ease of hook positioning.
  • Handles a wide range of coil widths.
  • Available with optional padding for additional coil protection.
  • Complies with ASME standards.



Specifications:

Heavy Duty C-Hook

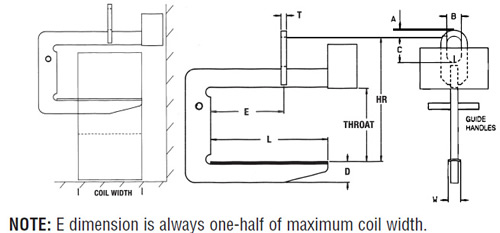

Model Number Capacity
(tons)		 Max Width
(in.)		 Min Width
(in.)		 Throat L
(in.)		 D
(in.)		 W
(in.)		 HR
(in.)		 A
(in.)		 B
(in.)		 C
(in.)
T
(in.)
Weight
(lbs)
82-5-36 5 36 24 24 30 5-5/16 4 37-3/8 1-1/2 4 7
1-1/4
420
82-5-48 5 48 30 24 39 6-1/8 4 38 1-1/2 4 7
1-1/4
584
82-5-60 5 60 36 24 48 6-9/16 4 38-1/2 1-1/2 4 7
1-1/4
680
82- 7 1/2-36 7-1/2 36 24 24 30 5-5/8 4 37-1/2 1-1/2 4 7
1-1/2
615
82-7 1/2-48 7-1/2 48 30 24 39 6-5/16 4 38-1/4 1-1/2 4 7
1-1/2
774
82-7 1/2-60 7-1/2 60 36 24 48 6-5/16 4 39 1-1/2 4 7
1-1/2
942
82-10-48 10 48 30 24 39 7-1/4 4 41-1/4 2 5 9
1-3/4
928
82-10-60 10 60 36 24 48 7-1/2 4 41-3/8 2 5 9
1-3/4
1295
82-10-72 10 72 42 24 57 7-1/4 4 42-1/2 2 5 9
1-3/4
1616
82-15-48 15 48 30 30 39 7-1/4 4 47-7/8 2 5 9
1-3/4
1450
82-15-60 15 60 36 30 48 8 4 48 2 5 9
1-3/4
1824
82-15-72 15 72 42 30 57 8-3/4 4 48-3/4 2 5 9
1-3/4
2227
82-20-60 20 60 36 30 48 9-1/8 4 52-1/8 2-1/4 6 12
2
2175
82-20-72 20 72 42 30 57 10 4 52-5/16 2-1/4 6 12
2
2625
82-25-60 25 60 36 34 48 9 4 57-3/4 2-1/2 6 14
2-1/4
2820
82-25-72 25 72 42 34 57 9-3/4 4 58-1/2 2-/12 6 14
2-1/4
3570
82-30-60 30 60 36 34 48 9-7/8 4 58-3/4 2-3/4 6 14
2-1/2
3180
82-30-72 30 72 42 34 57 10-5/8 4 59-3/8 2-3/4 6 14
2-1/2
3800
82-40-72 40 72 42 38 57 11 5 68 3-1/4 7 18
3
5350
82-50-84 50 84 48 40 64-1/2 13 6 71-7/8 3-3/4 7 18
3
7470

Use the table above to find the part number you desire then click "Add To Quote."
You can add as many different items to your quote as you want!
.
