HLW Model

 HLW Model Horizontal Lifting Clamp HLW Model Horizontal Lifting Clamp

Product Features:

  • Horizontal Lifting Clamp
    • Used in pairs, sets of pairs, or in a tripod arrangement to lift and transfer plate in a horizontal position only.
  • Non-Locking
  • High Strength Shock Resistant Steel
    • Provides for longer clamp life.
  • Wide Jaw Openings
    • Wider jaw openings available in Model HLW.
  • Rated for 420 Brinell Surface Hardness
    • Grippers are rated to lift material with a surface hardness of up to 420 Brinell.
    • Available with smooth gripping surface of bronze or stainless steel for handling plate with a surface hardness in excess of 420 Brinell and polished metals.

Specifications:

Horizontal Lifting Clamp angles diagram 1

As top sling angle increases, the clamp's rated capacity decreases.
Top Sling Angle                     Rated Capacity
0 - 60°                                    100 %
61 - 90°                                     75 %
91 - 120°                                     50 %

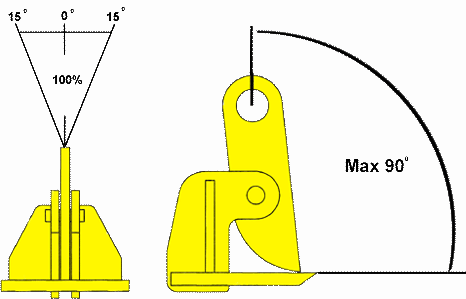

Horizontal Lifting Clamp angles diagram 2



Never Exceed 15 degrees side loading.

Horizontal Lifting Clamp usage diagram

Horizontal Lifting Clamp measurement diagram

Model Number Capacity
(tons/pair)		 A B C D E F G H J K
max		 Weight
(lbs/pair)
HLW3 3 1 1/2" 0 - 6" 11 3/8 8 7/8 5/8 9 3/4 7 3/4 15 5/8 90
HLW6 6 1 1/2" 0 - 6" 11 3/8 8 7/8 3/4 9 3/4 7 3/4 15 3/4 110
HLW8 8 2 1/4" 0 - 6" 12 3/4 8 1 1/4 1 9 1/2 1 8 1/4 18 3/8 162

Use the table above to find the part number you desire then click "Add To Quote."
You can add as many different items to your quote as you want!

Please note: Rated capacity shown is for a pair of HL-Lock models.
They are sold individually so please specify your desired quantity in your request for quote.
.
