HL Model
Product Features:
- Horizontal Lifting Clamp
- Used in pairs, sets of pairs, or in a tripod arrangement to lift and transfer plate in a horizontal position only.
- Non-Locking
- High Strength Shock Resistant Steel
- Provides for longer clamp life.
- Wide Jaw Openings
- Wider jaw openings available in Model HLW.
- Rated for 420 Brinell Surface Hardness
- Grippers are rated to lift material with a surface hardness of up to 420 Brinell.
- Available with smooth gripping surface of bronze or stainless steel for handling plate with a surface hardness in excess of 420 Brinell and polished metals.
Specifications:

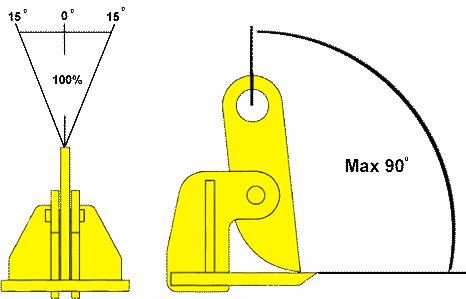

As top sling angle increases, the clamp's rated capacity decreases. |
Never Exceed 15 degrees side loading. |
Model Number | Capacity (tons/pair) |
A | B | C | D | E | F | G | H | J | K max |
Weight (lbs/pair) |
HL.5 | 1/2 | 1 1/2" | 0 - 1" | 5 3/4 | 5 1/4 | 1/2 | 1/2 | 2 1/2 | 1/2 | 4 | 6 1/8 | 13 |
HL1 | 1 | 1 1/2" | 0 - 2" | 8 3/8 | 8 | 5/8 | 1/2 | 4 1/2 | 1/2 | 5 3/8 | 10 1/4 | 31 |
HL1.5 | 1 1/2 | 1 1/2" | 0 - 2" | 8 3/8 | 8 | 5/8 | 1/2 | 4 1/2 | 5/8 | 5 3/8 | 10 1/4 | 36 |
HL3 | 3 | 1 1/2" | 0 - 2" | 8 3/8 | 8 | 3/4 | 5/8 | 4 1/2 | 3/4 | 5 3/8 | 10 3/8 | 45 |
HL6 | 6 | 1 1/2" | 0 - 2" | 8 3/8 | 8 | 3/4 | 3/4 | 4 1/2 | 3/4 | 5 3/8 | 10 1/2 | 52 |
HL8 | 8 | 2 1/4" | 0 - 3" | 9 3/4 | 8 | 1 1/4 | 1 | 6 | 1 | 6 1/2 | 13 5/8 | 108 |
Use the table above to find the part number you desire then click "Add To Quote." Please note: Rated capacity shown is for a pair of HL-Lock models. |
