HLDW Model
Product Features:
- Horizontal Lifting Clamp
- Used in pairs, sets of pairs, or in a tripod arrangement to lift and transfer plate in a horizontal position only.
- Non-Locking
- Extra Wide Jaw Openings
- Extra wide jaw openings allow for better unloading and transporting of stacked horizontal plates.
- Dual Gripping Cams
- Dual serrated gripping cams clamp onto the plate for a more secure lift
- High Strength Shock Resistant Steel
- Provides for longer clamp life.
- Rated for 420 Brinell Surface Hardness
- Grippers are rated to lift material with a surface hardness of up to 420 Brinell.
- Available with smooth gripping surface of bronze or stainless steel for handling plate with a surface hardness in excess of 420 Brinell and polished metals.
Specifications:

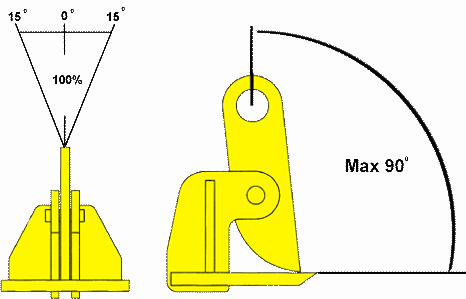

As top sling angle increases, the clamp's rated capacity decreases. |
Never Exceed 15 degrees side loading. |
| Model Number | Capacity (tons/pair) |
A | B | C | D | E | F | G | H | J | K max |
Weight (lbs/pair) |
| HLDW6 | 6 | 2" | 0 - 6" | 11 3/8 | 11 3/8 | 1 | 5/8 | 9 | 1 | 7 3/4 | 19 3/4 | 150 |
| HLDW12 | 12 | 2" | 0 - 6" | 11 3/8 | 11 1/2 | 1 | 3/4 | 9 | 1 | 7 3/4 | 19 3/4 | 175 |
| HLDW16 | 16 | 2 5/8" | 0 - 6" | 12 3/4 | 16 | 1 3/16 | 1 | 9 1/2 | 1 | 8 1/2 | 22 1/2 | 275 |
Use the table above to find the part number you desire then click "Add To Quote." Please note: Rated capacity shown is for a pair of HL-Lock models. |
.
