HLD Model
Product Features:
- Horizontal Lifting Clamp
- Used in pairs, sets of pairs, or in a tripod arrangement to lift and transfer plate in a horizontal position only.
- Non-Locking
- Dual Gripping Cams
- Dual serrated gripping cams clamp onto the plate for a more secure lift
- High Strength Shock Resistant Steel
- Provides for longer clamp life.
- Wide Jaw Openings
- Wider jaw openings available in Model HLW.
- Rated for 420 Brinell Surface Hardness
- Grippers are rated to lift material with a surface hardness of up to 420 Brinell.
- Available with smooth gripping surface of bronze or stainless steel for handling plate with a surface hardness in excess of 420 Brinell and polished metals.
Specifications:

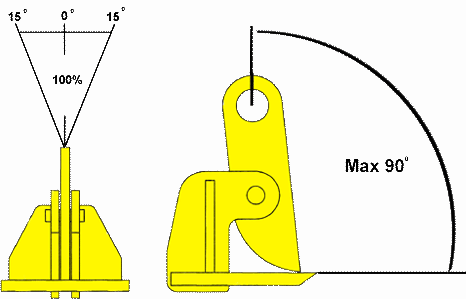

As top sling angle increases, the clamp's rated capacity decreases. |
Never Exceed 15 degrees side loading. |
| Model Number | Capacity (tons/pair) |
A | B | C | D | E | F | G | H | J | K max |
Weight (lbs/pair) |
| HLD3 | 3 | 2" | 0 - 2" | 9 3/8 | 11 | 1 | 12 | 4 1/2 | 3/4 | 6 1/4 | 14 1/4 | 108 |
| HLD6 | 6 | 2" | 0 - 2" | 9 3/8 | 11 3/8 | 1 | 5/8 | 4 1/2 | 1 | 6 1/4 | 14 1/2 | 130 |
| HLD12 | 12 | 2" | 0 - 2" | 9 3/8 | 11 1/2 | 1 | 3/4 | 4 1/2 | 1 | 6 1/4 | 13 3/8 | 160 |
| HLD16 | 16 | 2 5/8" | 0 - 3" | 12 1/2 | 16 | 1 3/16 | 1 | 6 | 1 | 9 | 17 3/4 | 224 |
Use the table above to find the part number you desire then click "Add To Quote." Please note: Rated capacity shown is for a pair of HL-Lock models. |
.
