Model HDR
Product Features:

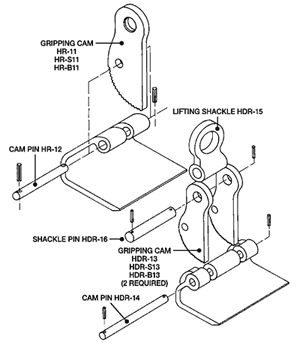

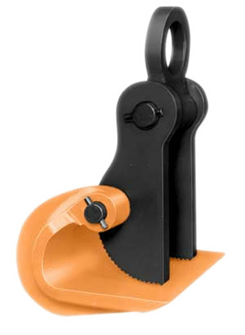

The Model HR is a horizontal lifting clamp intended to be used in pairs, sets of pairs, or in a tripod arrangement for transporting steel plates horizontal. The Model HDR is similar to the Model HR except that it contains dual cam assemblies which provide two gripping surfaces. Equipped with serrated gripping cams as standard equipment, both models are available with smooth, bronze or stainless steel gripping cams to prevent marring when handling polished metals such as stainless steel, copper, aluminum, etc. |
Specifications:
 |
 |
 |
| Model Number | Rated Capacity (Tons) |
Jaw Opening A |
B | C | D | E | F | G | H | J | K | L | Weight (in pounds) |
| HDR3000 | 1-1/2 | 0-2 | 4 3/8 | 5/8 | + | 3 1/4 | 5 5/8 | 6 1/4 | 12 | 15/16 | 3/4 | 5 | 44 |
| HDR6000 | 3 | 0-2 | 4 3/8 | 3/4 | + | 3 1/4 | 5 5/8 | 6 3/8 | 12 | 15/16 | 3/4 | 5 | 48 |
| HDR12000 | 6 | 0-2 | 4 5/8 | 5/8 | 1 5/8 | 3 1/4 | 5 5/8 | 7 1/4 | 12 | 15/16 | 1 5/8 | 5 | 53 |
| HDR16000 | 8 | 0-3 | 5 5/8 | 3/4 | 2 1/8 | 3 1/4 | 7 1/2 | 9 5/8 | 121/4 | 15/16 | 1 5/8 | 5 1/4 | 84 |
Use the table above to find the part number you desire then click "Add To Quote." |
.
