Girder Clamps

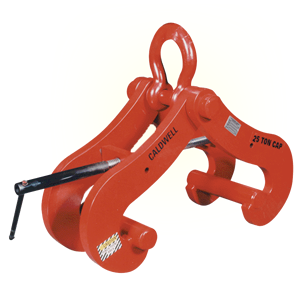

Girder Clamps Model GC

Product Features:

  • These clamps provide an efficient method for handling wide flange beam sections and plate girders.
  • Screw-spindle design ensures positive grip.
  • Simple design ensures minimum maintenance.
  • Left-hand thread and right-hand thread screw spindle allows for rapid clamping and unclamping.
  • Jaw opening adjusts to a wide range of beam types and flange widths.
  • Use only for vertical lifting.
  • Complies with ASME standards.


Specifications:

Girder Clamps Model GC Diagram

Model Number Rated Capacity (tons) Flange Width
Min - Max
(in.)		 Max Flange Thickness (in.) A (in.) B (in.) C (in.) D
Min - Max (in.)		 E
Min - Max (in.)		 Weight (lbs.)
GC-15 15 6 - 24 3 14.81 3.9 1.6 23 - 44 15.7 - 23.4 234
GC-20 20 6 - 24 3 14.81 5 2.1 23 - 44 18.3 - 25.9 291
GC-25 25 6 - 24 3 14.81 5 2.1 23 - 44 18.3 - 25.9 342
