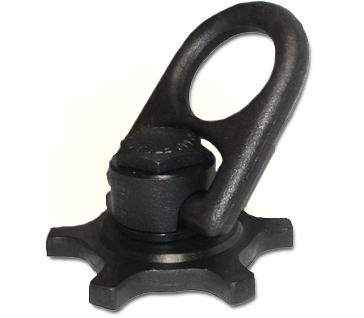

Forged Street Plate Lifting Rings
Patent #6,161,883 6,161,884 6,231,267 6,398,447 & 6,612,631
Street plate lifting system offers the fastest and safest method of handling trench plates.
Product Features:
Actek introduced a Street Plate Lifting Ring working in conjunction with the safety engineers of a large public utility company. These patented Street Plate Lifting Rings enable faster and safer handling of heavy steel plates commonly used to cover trenches and excavations in streets and roadways during construction or repair
Because these rings can swivel 360º and pivot 180º, the rigger can leave the ring on the hook while attaching it into the steel plate, and the operator can pull at any angle without compromising the strength.
Fabricated of heat treated, magnetic particle inspected and certified 4140 Aircraft Quality, Chrome-Moly Steel, the street plate lifting rings provide a 5:1 Safety Factor at maximum rated load. Models are available in 5000, 10000 and 15000 pound ranges. They are designed for quick, simple attachment with the star-shaped drive lugs for easy tightening and removal; no tools are required. There are no loose pins or clips to break or fall out.
Furthermore, the Street Plate Lifting System was designed specifically with safety in mind. The Lifting Rings and Nuts are manufactured to work in conjunction with each other to ensure proper usage. Matching the nuts or studs with those from other suppliers is not recommended. Commercially available nuts may not meet the specific tolerances required for lifting heavy load.
|
Specifications:

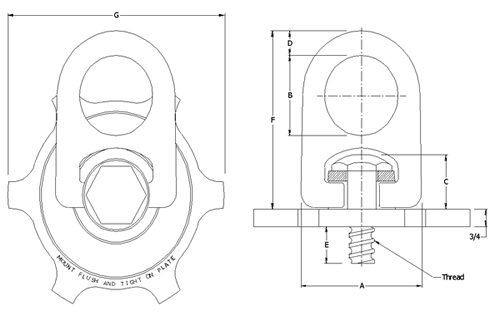

Item # | Rated Load | Thread Size | Thread Protrusion (E) | B |
38005 | 5000 lbs | 3/4" | 3/4 in | 2.40 in |
38015 | 5000 lbs | 1" | 1 in | 2.40 in |
38045 | 5000 lbs | 3/4" | 3/4 in | 2.40 in |
38055 | 5000 lbs | 1" | 1 in | 2.40 in |
38025 | 5000 lbs | 3/4" | 3/4 in | 2.40 in |
38035 | 5000 lbs | 1" | 1 in | 2.40 in |
38215 | 10000 lbs | 1 1/4" | 1 in | 3.20 in |
38225 | 10000 lbs | 1 1/2 | 1 1/2 in | 3.20 in |
38235 | 10000 lbs | 1 1/4" | 1 in | 3.20 in |
38245 | 10000 lbs | 1 1/2 | 1 1/2 in | 3.20 in |
38255 | 10000 lbs | 1 1/4" | 1 in | 3.20 in |
38915 | 10000 lbs | 1 1/2 | 1 1/2 in | 3.20 in |
38865 | 15000 lbs | 1 1/4" | 1 in | 4 in |
38875 | 15000 lbs | 1 1/2 | 1 1/2 in | 4 in |
38885 | 15000 lbs | 1 1/4" | 1 in | 4 in |
38895 | 15000 lbs | 1 1/2 | 1 1/2 in | 4 in |
38870 | 15000 lbs | 1 1/4" | 1 in | 4 in |
38890 | 15000 lbs | 1 1/2 | 1 1/2 in | 4 in |
