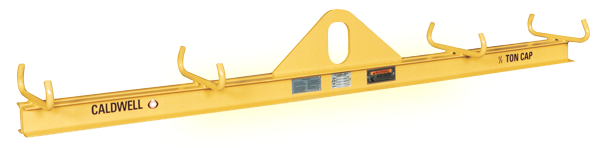

Fixed Twin Basket Sling

The Model 18 - Fixed Twin Basket Sling Lifting Beam is the ideal solutions as a dedicated lifting beam when handling loads with lifting slings in a basket hitch. "Bull Horn" style hooks set on top of a lifting beam, helping to reduce the overall headroom required for this type of lifting beam.

Fixed Twin Basket Sling

Fixed Twin Basket Sling

Product Features:

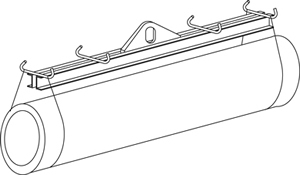

  • Designed to be used with slings in a basket hitch.
  • Provides greatest clearance in low headroom applications.
  • Two sets of bent bar hooks are standard on units with a spread of 6’ and greater.
  • Spread 2 is 1/2 of spread 1.
  • Hooks are designed to handle up to a 2” sling eye width.
  • Complies with ASME standards.



Specifications:

Fixed Twin Basket Sling

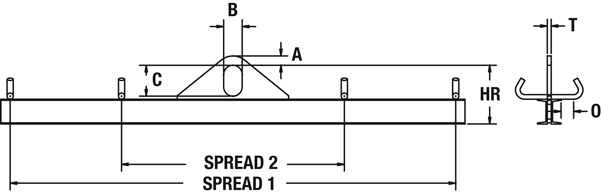

Model Number Capacity (tons) Spread (ft.) HR (in.) A (in.) B (in.) C (in.)
T (in.)
O (in.)
Weight (lbs.)
18-1/2-3 1/2 3 8-1/2 7/8 3 5
3/4
2
40
18-1/2-4 1/2 4 8-1/2 7/8 3 5
3/4
2
48
18-1/2-6 1/2 6 8-1/2 7/8 3 5
3/4
2
78
18-1/2-8 1/2 8 8-1/2 7/8 3 5
3/4
2
95
18-1/2-10 1/2 10 8-1/2 7/8 3 5
3/4
2
113
18-1/2-12 1/2 12 9-1/2 7/8 3 5
3/4
2
171
18-1-3 1 3 8-1/2 7/8 3 5
3/4
2
40
18-1-4 1 4 8-1/2 7/8 3 5
3/4
2
48
18-1-6 1 6 9-1/2 7/8 3 5
3/4
2
93
18-1-8 1 8 10-1/2 7/8 3 5
3/4
2
136
18-1-10 1 10 10-1/2 7/8 3 5
3/4
2
175
18-1-12 1 12 11-1/2 7/8 3 5
3/4
2
239
18-2-3 2 3 9-1/2 7/8 3 5
3/4
2
52
18-2-4 2 4 10-1/2 7/8 3 5
3/4
2
75
18-2-6 2 6 10-1/2 7/8 3 5
3/4
2
139
18-2-8 2 8 11-1/2 7/8 3 5
3/4
2
169
18-2-10 2 10 12-1/2 7/8 3 5
3/4
2
246
18-2-12 2 12 13-1/2 7/8 3 5
3/4
2
326
18-5-3 5 3 13-1/2 2 4 7
1-1/4
2
104
18-5-4 5 4 14-1/2 2 4 7
1-1/4
2
135
18-5-6 5 6 15-1/2 2 4 7
1-1/4
2
211
18-5-8 5 8 16-1/2 2 4 7
1-1/4
2
310
18-5-10 5 10 17-1/2 2 4 7
1-1/4
2
423
18-5-12 5 12 19-1/2 2 4 7
1-1/4
2
618
18-7 1/2-3 7 1/2 3 12 2 4 7
1-1/4
2
125
18-7 1/2-4 7 1/2 4 14 2 4 7
1-1/4
2
185
18-7 1/2-6 7 1/2 6 15 2 4 7
1-1/4
2
315
18-7 1/2-8 7 1/2 8 17 2 4 7
1-1/4
2
475



Use the table above to find the part number you desire then click "Add To Quote."
You can add as many different items to your quote as you want!
.
