Die Lifting Tongs

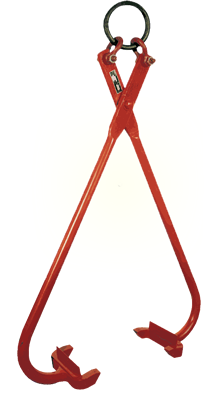

Die Lifting Tongs Model DLT

Product Features:

  • Broad capacity range.
  • Low headroom design.
  • Painted safety red.
  • Complies with ASME standards.



Specifications:

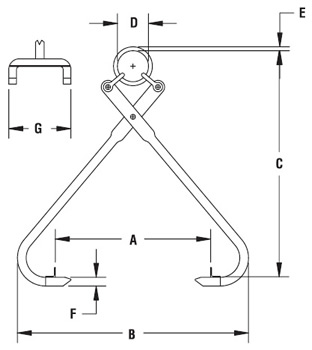

Die Lifting Tongs diagram model DLT

Model Number Capacity
(lbs)
A Max
(in.)
B
(in.)
C
(in.)
D
(in.)
E
(in.)
F
(in.)
G
(in.)
HR
(in.)
Weight
(lbs)
DLT-1-20 2000 20 29-3/4 29 4 5/8 1 8 7 29
DLT-1 1/4-28 2500 28 40-1/4 39 5 3/4 1-1/4 8 9-1/2 52
DLT-1 1/2-38 3000 38 51-3/4 47-1/2 6 7/8 1-1/2 10 10-3/4 86

Use the table above to find the part number you desire then click "Add To Quote."
You can add as many different items to your quote as you want!



.
