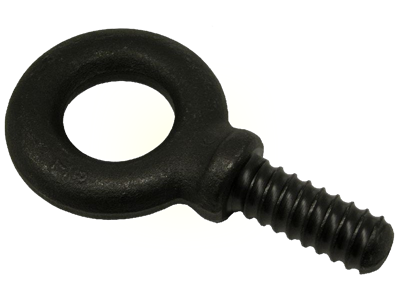

Coil Shoulder Eyebolts

Coil Shoulder Eyebolts

Product Features:

  • Material : Alloy Heat Treated
  • Finish : Hot Dip Galvanized & Black Oxide Full thread
  • Working load limit is for straight lifts. Angle lifts should be avoided.
  • Load limits are reduced by 75% on angle lifts.
  • The shoulder must be mounted flush to lifting surface.



Specifications:

Item # Thread Type Material Thread Diameter Working Load Limit
48672 Coil  Alloy Heat Treated  3/4 in  5000 lbs
48672-6  Coil  Alloy Heat Treated  3/4 in  5000 lbs
48674 Coil  Alloy Heat Treated  1 in  10000 lbs
48674-6  Coil  Alloy Heat Treated  1 in  10000 lbs

Use the table above to find the part number you desire then click "Add To Quote."
You can add as many different items to your quote as you want!



.
