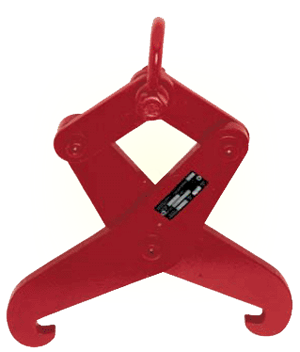

Beam Tongs

Beam Tongs

Product Features:

  • Tong provided with lifting shackle.
  • Load must be balanced and controlled when lifting.
  • Use only for vertical lifting.
  • For added stability when handling longer loads, use in pairs with a spreader beam.
  • Complies with ASME standards.



Specifications:

Beam Tongs

Model Number Rated Capacity
(tons)		 Beam Width Min - Max
(in.)		 Flange Thickness Max
(in.)		 A
(in.)		 Weight
(lbs.)
111-1 1 5 - 6 5/8 17 15
111-2 2 6.50 - 8 3/4 19 18
111-3 3 7.50 - 10 3/4 19 21

Use the table above to find the part number you desire then click "Add To Quote."
You can add as many different items to your quote as you want!
.
