Beam Flange Clamps

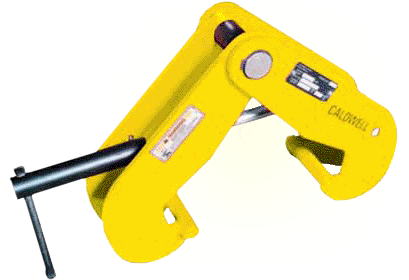

Beam Flange Clamps Model BFC

Product Features:

  • Rated load capacities from 1 to 5 tons.
  • Lightweight and portable design.
  • Left-hand thread and right-hand thread screw spindle allows for rapid clamping and unclamping.
  • Jaw opening adjusts to a wide range of beam types and flange widths.
  • Use only for vertical lifting.
  • Built-in suspension pin provides lower headroom.
  • Available with Large Bail option for oversized hoist hooks.
  • Complies with ASME standards.

Product Options:

Beam Flange Clamps Option LB

Beam Flange Clamps Option LB


Specifications:

Beam Flange Clamps model BFC diagram

Model Number Rated Capacity
(lbs.)		 D Min.
(in.)		 D Max.
(in.)		 E Max.
(in.)		 F
(in.)		 G
(in.)		 H
(in.)		 J
(in.)		 A
(in.)		 B
(in.)		 C
(in.)		 T
(in.)		 Weight
(lbs.)
BFC-1 2200 3.00 7.50 12.25 3.00 9.25 0.88 2.10 0.75 2.00 2.00 0.63 8
BFC-2 4400 3.00 7.50 12.25 3.00 9.25 0.88 2.10 0.75 2.00 2.00 0.63 9
BFC-3 6600 6.00 12.00 19.75 4.25 11.00 1.25 2.38 1.00 2.50 2.50 1.00 19
BFC-5 11000 6.00 12.00 19.75 4.25 11.00 1.25 2.38 1.00 2.50 2.50 1.00 22
BFC-10 22000 6.00 13.25 22.50 6.00 14.63 1.75 4.65 1.38 3.75 6.25 1.25 50
