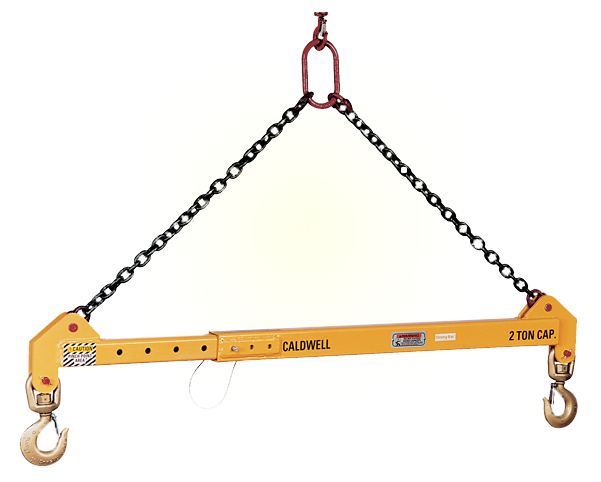

Adjustable Spreader Beam

This is an adjustable spreader beam that provide a versatile solution for handling many different sized loads, ideal for outdoor applications.

Adjustable Spreader Beam

Product Features:

  • Ideal where headroom is not limited.
  • Adds stability to lift. Telescopic spread standard.
  • Available with standard chain or wire rope rigging.
  • Available with Adjust-A-Leg® rigging for off center load adjustment (minimum lifting capacity will be approximately 10-15% of beam rating).
  • Wide range of additional sizes and capacities available.
  • Complies with ASME standards.

Top Rigging Options:

  • Option C - Chain top rigging from beam to crane hook.
  • Option W - Wire rope top rigging from beam to crane hook.



Specifications:

Adjustable Spreader Beam Specifications

Model Number Capacity (tons) Max Spread (ft) Min Spread (ft) HR Min/Max
w.chain rigging (in.)		 A (in.) B (in.) C (in.) F (in.) O (in.) Weight Beam & Hooks
(lbs.)		 Chain Rigging Weight
(lbs.)
32-2-4/6 2 6 4 57/48 1/2 2.36 3.94 5.5 0.97 70 9
32-2-6/10 2 10 6 88/72 1/2 2.36 3.94 5.5 0.97 85 13
32-2-8/14 2 14 8 113/96 1/2 2.36 3.94 5.5 0.97 175 17
32-2-12/20 2 20 12 166/132 1/2 2.36 3.94 5.5 0.97 245 23
32-5-4/6 5 6 4 64/55 1 3.94 7.09 8.4 1.41 105 34
32-5-6/10 5 10 6 95/79 1 3.94 7.09 8.4 1.41 160 47
32-5-8/14 5 14 8 126/102 1 3.94 7.09 8.4 1.41 205 61
32-5-12-20 5 20 12 172/138 1 3.94 7.09 8.4 1.41 670 82
32-10-4/6 10 6 4 69/60 1-1/4 5.51 10.63 10.6 1.78 95 49
32-10-6/10 10 10 6 111/74 1-1/4 5.51 10.63 10.6 1.78 175 69
32-10-8/14 10 14 8 132/108 1-1/4 5.51 10.63 10.6 1.78 460 88
32-10-12/20 10 20 12 163/144 1-1/4 5.51 10.63 10.6 1.78 680 118
32-15-4/6 15 6 4 72/64 1-1/2 5.25 10.5 13.6 2.22 165 78
32-15-6/10 15 10 6 104/87 1-1/2 5.25 10.5 13.6 2.22 365 111
32-15-8/14 15 14 8 135/111 1-1/2 5.25 10.5 13.6 2.22 478 145
32-15-12/20 15 20 12 180/147 1-1/2 5.25 10.5 13.6 2.22 700 194

Use the table above to find the part number you desire then click "Add To Quote."
You can add as many different items to your quote as you want!
.
