Adjustable Lifting Beam

Versatile beam that has adjustable spreaders and lifting bail standard to allow for handling of a wide range of loads with a single lifting beam. Product can be used with provided shackles or add optional hooks for increased versatility.

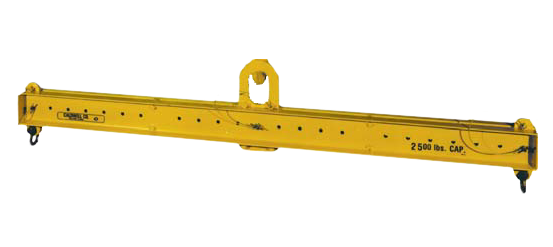

Adjustable Lifting Beam

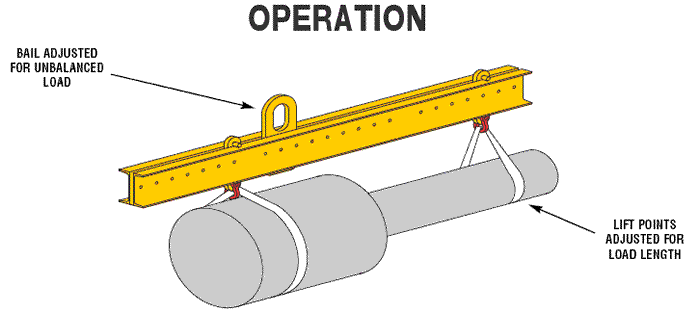

Adjustable Lifting Beam Operation

Product Features:

  • Bail adjusts horizontally for lifting unbalanced loads.
  • Provides clearance in low headroom applications.
  • Spread adjusts in 6” increments along lifting beam.
  • Shackles included.
  • Optional swivel hooks available.
  • Complies with ASME standards.

Product Options:

  • Option S- Pair of swivel hooks



Specifications:

Adjustable Lifting Beam Specifications

Model Number Rated Cap. (tons) Max Spread (in.) Min. Spread (in.) Bail Adj.
(in.)
D (in.) HR (in.) A (in.) B (in.) C (in.) T (in.) Weight (lbs.)
17-1.1/4-6 1.1/4 72 36 24 3 14.7 1 1/2 3 5 5/8 150
17-2-6 2 72 36 24 3 14.7 1 1/2 3 5 5/8 155
17-4-8 4 96 54 36 6 19.8 2 4 7 3/4 285
17-5-10 5 120 60 36 6 22.4 2 4 7 1 475



Use the table above to find the part number you desire then click "Add To Quote."
