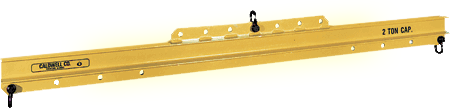

Adjustable Lifting/Spreader Beam

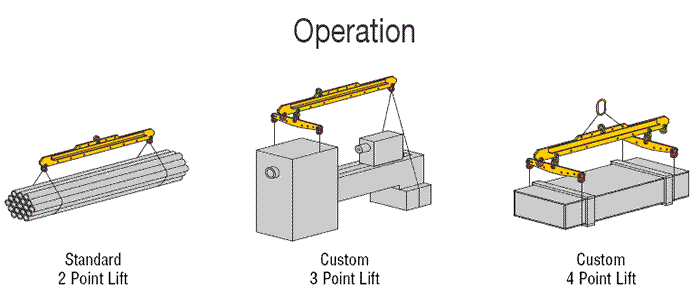

Adjustable bail, adjustable spreads, and the option to add top rigging for additional stability, this is a versatile lifting / spreader beam.
Product Features:
|
Product Options:
|
Specifications:
Model Number | Capacity | Spread - Max |
Spread - Min |
Bail Adj. |
HR (in) | Top BTAS Cap |
Bottom BTAS Cap |
Weight (lbs) |
16-1/4-4 | 1/4 | 48 | 12 | 16 | 7.13 | 1.5 | 1.5 | 40 |
16-1/2-4 | 1/2 | 48 | 12 | 16 | 7.13 | 1.5 | 1.5 | 40 |
16-1/2-6 | 1/2 | 72 | 36 | 24 | 10 | 1.5 | 1.5 | 100 |
16-1/2-8 | 1/2 | 96 | 48 | 32 | 10 | 1.5 | 1.5 | 135 |
16-1/2-10 | 1/2 | 120 | 60 | 40 | 10 | 1.5 | 1.5 | 145 |
16-1-6 | 1 | 72 | 36 | 24 | 10 | 1.5 | 1.5 | 100 |
16-1-8 | 1 | 96 | 48 | 32 | 11 | 1.5 | 1.5 | 140 |
16-1-10 | 1 | 120 | 60 | 40 | 11 | 1.5 | 1.5 | 175 |
16-2-6 | 2 | 72 | 36 | 24 | 12.50 | 3.25 | 2 | 130 |
16-2-8 | 2 | 96 | 48 | 32 | 13.5 | 3.25 | 2 | 200 |
16-2-10 | 2 | 120 | 60 | 40 | 14.5 | 3.25 | 2 | 280 |
16-4-8 | 4 | 96 | 48 | 32 | 16.75 | 4.75 | 4.75 | 290 |
16-4-10 | 4 | 120 | 60 | 40 | 18.75 | 4.75 | 4.75 | 420 |
16-4-12 | 4 | 144 | 72 | 48 | 18.75 | 4.75 | 4.75 | 500 |
16-5-8 | 5 | 96 | 48 | 32 | 18.75 | 6.5 | 4.75 | 320 |
16-5-10 | 5 | 120 | 60 | 40 | 20.25 | 6.5 | 4.75 | 465 |
16-5-12 | 5 | 144 | 72 | 48 | 20.25 | 6.5 | 4.75 | 550 |
16-7-12 | 7 | 144 | 72 | 48 | 23.75 | 8.5 | 6.5 | 790 |
Use the table above to find the part number you desire then click "Add To Quote." |
.
