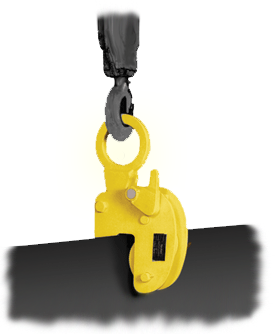

AVL and VL with Auxiliary Lock
Product Features:
- Auxiliary Lock
- Double locking mechanism in the "locked closed" position.
- Requires the user to utilize a push button release before moving the lock handle to the open position.
- Remote release is NOT available in this model.
- Horizontal to Vertical Lift
- Capable of turning a single steel plate from horizontal to vertical before vertically transferring the material.
- Locks Open and Locks Closed
- Locks open to facilitate loading and unloading clamp.
- Locks closed onto material for a more secure lift.
- Gripping Cams and Gripping Pad
- 2 through 20 ton lift capacities incorporate dual upper gripping cams and a single lower gripping pad to give you 3 separate gripping points for stability.
- Gripping pad is self-aligning for increased surface contact.
- Wide Jaw Openings
- Safety Clamps, Inc. offers the widest standard jaw openings in the industry.
- High Strength Shock Resistant Steel
- Provides for longer clamp life.
- Working Parts Protected
- Working parts remain inside the body in the “locked closed” position and the “locked open” position.
- Protects parts for longer use.
- Rated for 420 Brinell Surface Hardness
- Grippers are rated to lift material with a surface hardness of up to 420 Brinell.
- Models AVL and VL are also available with:
- Note: The 1/2 and 1 ton model AVL is the same as the 1/2 and 1 ton Model VL except for the jaw opening.
Specifications:
Model Number | Capacity (tons) |
A | B | C | D max |
E | F | G | H | J | K | Weight (lbs.) |
AAL.5 | 1/2 | 0 - 7/8" | 2 3/4 | 6 7/8 | 11 3/4 | 2 1/2 | 5 3/8 | 2 7/8 | 1 1/2 | 5/8 | 1/2 | 10 |
AAL1 | 1 | 0 - 7/8" | 2 3/4 | 6 7/8 | 11 3/4 | 2 1/2 | 5 3/8 | 2 7/8 | 1 1/2 | 5/8 | 1/2 | 10 |
AL.5 | 1/2 | 0 - 1 3/8" | 2 3/4 | 6 7/8 | 12 | 2 1/2 | 5 1/2 | 2 7/8 | 1 1/2 | 5/8 | 1/2 | 10 |
AL1 | 1 | 0 - 1 3/8" | 2 3/4 | 6 7/8 | 12 | 2 1/2 | 5 1/2 | 2 7/8 | 1 1/2 | 5/8 | 1/2 | 10 |
AL2.1 | 2 | 0 - 1 5/8" | 4 1/8 | 9 | 16 1/4 | 3 1/2 | 8 | 4 1/8 | 2 3/8 | 7/8 | 3/4 | 22 |
AL2.2 | 2 | 1 1/2 - 2 3/4" | 4 1/8 | 9 | 16 1/4 | 3 1/2 | 9 1/8 | 4 1/8 | 2 3/8 | 7/8 | 3/4 | 23 |
AL3.1 | 3 | 0 - 1 5/8" | 4 1/8 | 9 | 16 | 3 1/2 | 8 | 4 1/8 | 2 3/8 | 7/8 | 3/4 | 24 |
AL3.2 | 3 | 1 1/2 - 2 3/4" | 4 1/8 | 9 | 16 | 3 1/2 | 9 1/8 | 4 1/8 | 2 3/8 | 7/8 | 3/4 | 26 |
AL4.1 | 4 | 0 - 2 1/8" | 4 5/8 | 11 1/4 | 18 | 4 | 9 1/2 | 5 | 2 1/2 | 1 | 3/4 | 42 |
AL4.2 | 4 | 2 - 3 3/4" | 4 5/8 | 11 1/4 | 18 | 4 | 11 1/8 | 5 | 2 1/2 | 1 | 3/4 | 44 |
AL4.3 | 4 | 3 3/4 - 5 1/2" | 4 5/8 | 11 1/4 | 18 | 4 | 13 | 5 | 2 1/2 | 1 | 3/4 | 46 |
AL6.1 | 6 | 0 - 2 1/8" | 4 5/8 | 11 1/4 | 18 | 4 | 9 1/2 | 5 | 2 1/2 | 1 | 3/4 | 45 |
AL6.2 | 6 | 2 - 3 3/4" | 4 5/8 | 11 1/4 | 18 | 4 | 11 1/8 | 5 | 2 1/2 | 1 | 3/4 | 47 |
AL6.3 | 6 | 3 3/4 - 5 1/2" | 4 5/8 | 11 1/4 | 18 | 4 | 13 | 5 | 2 1/2 | 1 | 3/4 | 49 |
AL8.1 | 8 | 0 - 2 5/8" | 5 1/4 | 12 7/8 | 22 3/8 | 4 1/2 | 10 1/2 | 5 3/4 | 3 1/4 | 1 1/4 | 1 | 65 |
AL8.2 | 8 | 2 1/2 - 4 1/2" | 5 1/4 | 12 7/8 | 22 3/8 | 4 1/2 | 12 3/8 | 5 3/4 | 3 1/4 | 1 1/4 | 1 | 67 |
AL8.3 | 8 | 4 1/2 - 6 1/2" | 5 1/4 | 12 7/8 | 22 3/8 | 4 1/2 | 14 3/8 | 5 3/4 | 3 1/4 | 1 1/4 | 1 | 69 |
AL10.1 | 10 | 0 - 2 5/8" | 5 1/4 | 12 7/8 | 22 3/8 | 4 1/2 | 10 1/2 | 5 3/4 | 3 1/4 | 1 1/4 | 1 | 71 |
AL10.2 | 10 | 2 1/2 - 4 1/2" | 5 1/4 | 12 7/8 | 22 3/8 | 4 1/2 | 12 3/8 | 5 3/4 | 3 1/4 | 1 1/4 | 1 | 74 |
AL10.3 | 10 | 4 1/2 - 6 1/2" | 5 1/4 | 12 7/8 | 22 3/8 | 4 1/2 | 14 3/8 | 5 3/4 | 3 1/4 | 1 1/4 | 1 | 77 |
AL12.1 | 12 | 1/2 - 3 1/8" | 6 1/2 | 16 3/4 | 27 3/4 | 4 7/6 | 12 1/4 | 6 3/4 | 3 1/4 | 1 5/8 | 1 | 112 |
AL12.2 | 12 | 3 - 5 1/4" | 6 1/2 | 16 3/4 | 27 3/4 | 4 7/6 | 14 3/8 | 6 3/4 | 3 1/4 | 1 5/8 | 1 | 116 |
AL12.3 | 12 | 5 - 7 1/4" | 6 1/2 | 16 3/4 | 27 3/4 | 4 7/6 | 16 3/8 | 6 3/4 | 3 1/4 | 1 5/8 | 1 | 120 |
AL20.1 | 20 | 1/2 - 4 1/4" | 8 3/8 | 23 | 36 3/8 | 5 5/6 | 17 | 8 1/4 | 4 1/4 | 2 | 1 1/2 | 292 |
AL20.2 | 20 | 4 - 7" | 9 3/8 | 23 | 36 3/8 | 5 5/6 | 20 | 8 1/4 | 4 1/4 | 2 | 1 1/2 | 304 |
AL20.3 | 20 | 7 - 10" | 10 3/8 | 23 | 36 3/8 | 5 5/6 | 22 5/8 | 8 1/4 | 4 1/4 | 2 | 1 1/2 | 316 |
Use the table above to find the part number you desire then click "Add To Quote." |
.
